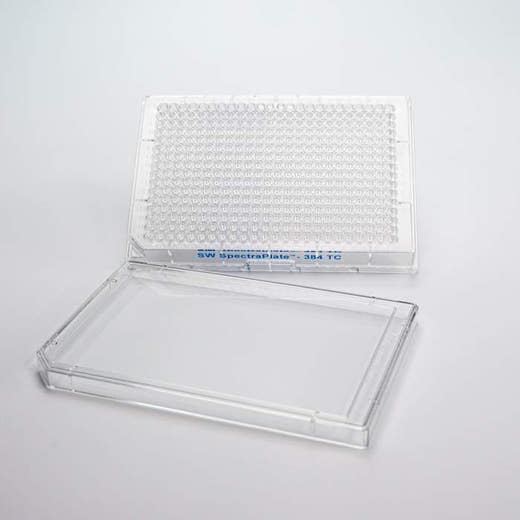

SpectraPlate 384-shallow well, tissue culture treated + LID, case of 50
SpectraPlate 384-shallow well, tissue culture treated + LID, case of 50
SW SpectraPlate-384 TC +LID
| Feature | Specification |
|---|---|
| Surface Treatment |
Sterile TC-treated |
| Color | Clear |
| Detection Modality | Absorbance/Colorimetric |
| Lids Included? | Yes |
| Material | Polystyrene |
| Sterility | Sterile |
| Plate Format | 384 wells |
| Well Shape | Flat-bottom |
| Well Volume | 105 µL |
| Working Volume | 24 - 90 µL |
Product variant
Unit Size: case of 50
Part #:
6008650
For research use only. Not for use in diagnostic procedures.
SpectraPlate 384-shallow well, tissue culture treated + LID, case of 50
SW SpectraPlate-384 TC +LID
SpectraPlate 384-shallow well, tissue culture treated + LID, case of 50
Product information
Overview
Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers.
Packaging notes:
- TC-treated boxes of 50 are packaged as 50 individually bagged and sealed lidded plates.
- TC-treated boxes of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- TC-treated boxes of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included, but can be ordered as Cat. No. 6005619 (for 96-well plates) or Cat. No. 6007619 (for 384- or 1536-well plates).
Well plate dimensions
Well format: 384-well
| Description | Specification |
|---|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.47 |
| Well diameter (mm) | 3.65 |
| Well depth (mm) | 10.4 |
| A1 to top offset (mm) | 9 |
| A1 to side offset (mm) | 12.1 |
| Well-to-well spacing (mm) | 4.5 |
Specifications
| Color |
Clear
|
|---|---|
| Plate Format |
384 wells
|
| Well Shape |
Flat-bottom
|
| Well Volume |
105 µL
|
| Working Volume |
24 - 90 µL
|
| Application |
Cell Culture
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
SpectraPlate
|
| Detection Modality |
Absorbance/Colorimetric
|
| Format |
Microplates
|
| Lids Included? |
Yes
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Sterile
|
| Surface Treatment |
Sterile
TC-treated
|
| Unit Size |
case of 50
|
