SpectraPlate 384-shallow well, medium bind, case of 50
SpectraPlate 384-shallow well, medium bind, case of 50

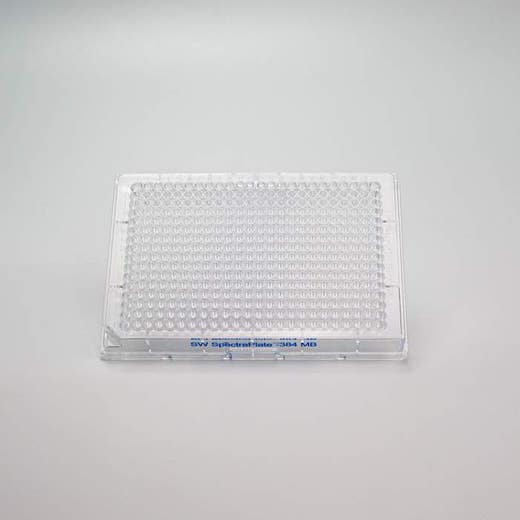

SpectraPlate-384 shallow-well medium-bind
| Feature | Specification |
|---|---|
| Surface Treatment | Untreated |
| Color | Clear |
| Detection Modality | Absorbance/Colorimetric |
| Lids Included? | No |
| Material | Polystyrene |
| Sterility | Non-Sterile |
| Plate Format | 384 wells |
| Well Shape | Shallow-well |
| Well Volume | 28 µL |
| Working Volume | 10 - 20 µL |
For research use only. Not for use in diagnostic procedures.
SpectraPlate 384-shallow well, medium bind, case of 50
SpectraPlate-384 shallow-well medium-bind
SpectraPlate 384-shallow well, medium bind, case of 50
Product information
Overview
Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers. These plates have a medium binding (MB) affinity and are specified for assays that do not require anchoring of cells or other reagents to the surface of the plate.
Packaging notes:
- Boxes of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Boxes of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Well plate dimensions
Well format: 384-well
| Description | Specification |
|---|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.47 |
| Well diameter (mm) | 3.65 |
| Well depth (mm) | 10.4 |
| A1 to top offset (mm) | 9 |
| A1 to side offset (mm) | 12.1 |
| Well-to-well spacing (mm) | 4.5 |
Specifications
| Color |
Clear
|
|---|---|
| Plate Format |
384 wells
|
| Well Shape |
Shallow-well
|
| Well Volume |
28 µL
|
| Working Volume |
10 - 20 µL
|
| Application |
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
SpectraPlate
|
| Detection Modality |
Absorbance/Colorimetric
|
| Format |
Microplates
|
| Lids Included? |
No
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Non-Sterile
|
| Surface Treatment |
Untreated
|
| Unit Size |
case of 50
|
