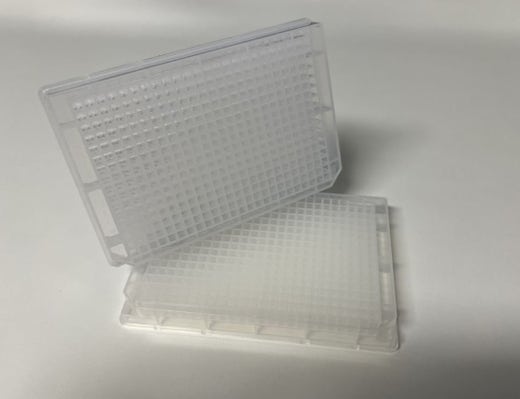

StorPlate 384-well, (V)-bottom, polypropylene, 120µL, case of 50
StorPlate 384-well, (V)-bottom, polypropylene, 120µL, case of 50
StorPlate-384V, PP, 384 well, V-bottom, (V), 120µL
| Feature | Specification |
|---|---|
| Surface Treatment | Untreated |
| Color | Natural |
| Lids Included? | No |
| Material | Polypropylene |
| Sterility | Non-Sterile |
| Plate Format | 384 wells |
| Well Shape | V-shaped |
| Well Volume | 120 µL |
| Working Volume | 25 - 110 µL |
For research use only. Not for use in diagnostic procedures.
StorPlate 384-well, (V)-bottom, polypropylene, 120µL, case of 50
StorPlate-384V, PP, 384 well, V-bottom, (V), 120µL
StorPlate 384-well, (V)-bottom, polypropylene, 120µL, case of 50
Product information
Overview
Manufactured from virgin polypropylene, the StorPlate-384V is a V-bottom 384 well plate specifically intended for compound storage. Each well has a working volume of 120 µL and a storage volume of 90 µL when used with the StorMat sealing mat. Polypropylene is both resistant to the solvents that are used in compound storage and suitable for use at temperatures down to -80°C. It is therefore widely accepted for this purpose in the Drug Discovery processes. Sealing mats, manufactured from research grade silicone are also available.
Features & benefits:
- Manufactured from virgin polypropylene
- Guaranteed solvent resistance (DMSO compatible)
- Suitable for use at temperatures down to -80°C
- Footprint conforms to SBS standards
- Compound storage
Packaging notes:
- Boxes of fifty 384-well plates (V-bottom or DW) are packaged as 10 sleeves of 5 plates.
- Boxes of two hundred 384-well V-bottom plates are packaged as 40 sleeves of 5 plates.
Well plate dimensions
384-well V-bottom
| Description | Specification |
|---|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 120 µL |
| Recommended working volume | 25 µL-110 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.75 |
| Width (mm) | 85.45 |
| Well diameter (mm) | square |
| Well depth (mm) | 11.85 |
| A1 to top offset (mm) | 8.99 |
| A1 to side offset (mm) | 12.13 |
| Well-to-well spacing (mm) | 4.5 |
Specifications
| Color |
Natural
|
|---|---|
| Plate Format |
384 wells
|
| Well Shape |
V-shaped
|
| Well Volume |
120 µL
|
| Working Volume |
25 - 110 µL
|
| Application |
Compound storage
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
StorPlate
|
| Format |
Microplates
|
| Lids Included? |
No
|
| Material |
Polypropylene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Non-Sterile
|
| Surface Treatment |
Untreated
|
| Unit Size |
case of 50
|
