SpectraPlate 1536-well, clear, sterile, tissue culture treated, case of 50
SpectraPlate 1536-well, clear, sterile, tissue culture treated, case of 50
SpectraPlate-1536 TC, Clear, sterile, TC treated
| Feature | Specification |
|---|---|
| Surface Treatment |
Sterile TC-treated |
| Color | Clear |
| Detection Modality | Absorbance/Colorimetric |
| Lids Included? | Yes |
| Material | Polystyrene |
| Sterility | Sterile |
| Plate Format | 1536 wells |
| Well Shape | Flat-bottom |
| Well Volume | 12 µL |
| Working Volume | 4 - 12 µL |
Product variant
Unit Size: case of 50
Part #:
6004650
For research use only. Not for use in diagnostic procedures.
SpectraPlate 1536-well, clear, sterile, tissue culture treated, case of 50
SpectraPlate-1536 TC, Clear, sterile, TC treated
SpectraPlate 1536-well, clear, sterile, tissue culture treated, case of 50
Product information
Overview

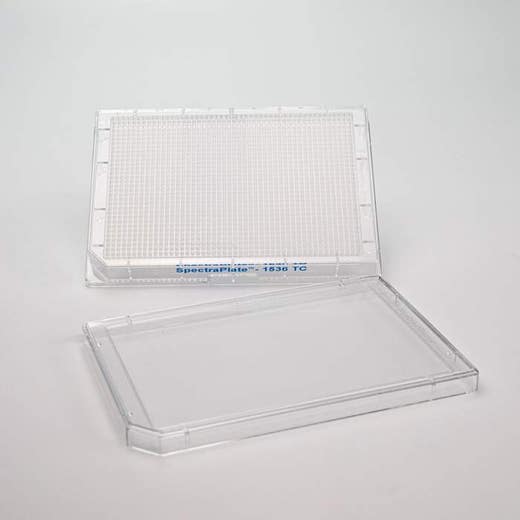

Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers.
Packaging notes:
- TC-treated boxes of 50 are packaged as 50 individually bagged and sealed lidded plates.
- TC-treated boxes of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
- TC-treated boxes of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included, but can be ordered as Cat. No. 6005619 (for 96-well plates) or Cat. No. 6007619 (for 384- or 1536-well plates).
Well plate dimensions
Well format: 1536-well
| Description | Specification |
|---|---|
| Number of rows | 32 |
| Number of columns | 48 |
| Well volume | 12 µL |
| Recommended working volume | 4 µL- 12 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 1.7 |
| Well depth (mm) | 4.8 |
| A1 to top offset (mm) | 7.84 |
| A1 to side offset (mm) | 10.96 |
| Well-to-well spacing (mm) | 2.25 |
Specifications
| Color |
Clear
|
|---|---|
| Plate Format |
1536 wells
|
| Well Shape |
Flat-bottom
|
| Well Volume |
12 µL
|
| Working Volume |
4 - 12 µL
|
| Application |
Cell Culture
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
SpectraPlate
|
| Detection Modality |
Absorbance/Colorimetric
|
| Format |
Microplates
|
| Lids Included? |
Yes
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Sterile
|
| Surface Treatment |
Sterile
TC-treated
|
| Unit Size |
case of 50
|
