HTRF Anti-Human IgG pAb Tb-Conjugate, 1,000 Assay Points

Tb cryptate-labeled anti-human IgG antibody for capturing human IgG-tagged proteins in protein/protein interaction assays.

View product information

Feature	Specification
Application	Protein-Protein Interaction

Tb cryptate-labeled anti-human IgG antibody for capturing human IgG-tagged proteins in protein/protein interaction assays.

View product information

Product variants

Unit Size: 1,000 assay points

Part #:

61HFCTAF

Unit Size: 5,000 assay points

Part #:

61HFCTAA

Unit Size: 20,000 assay points

Part #:

61HFCTAB

For research use only. Not for use in diagnostic procedures. All products to be used in accordance with applicable laws and regulations including without limitation, consumption, and disposal requirements under European REACH regulations (EC 1907/2006).

Request more information

Product information

Overview

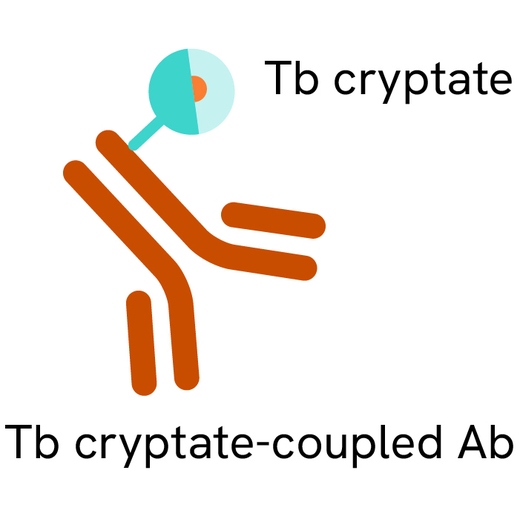

IgGs from goat anti-Human immunoserum were immunopurified and labeled with Tb. PAb Anti Human IgG-Tb cryptate may be used to detect the binding of unlabeled human specific antibody on a target molecule or on Ig fusion proteins.

This reagent can be used in both biochemical and cellular formats to study a wide variety of interactions: protein/protein, protein/peptide, protein/DNA, protein/RNA, protein/carbohydrate, protein/small molecule, receptor/ligand.

HTRF can detect a broad range of affinity constants ranging from picomolar to low millimolar.

How it works

Assay principle

In an HTRF interaction assay, one partner is labeled (directly or indirectly) with the donor, and the other with the acceptor (again, directly or indirectly). The intensity of the signal is proportional to the binding of the 2 partners. In the example shown here: PAb Anti Human IgG-Tb cryptate binds to the Human Fc fused tagged partner A while partner B* binds to a specific Ab labeled with an HTRF acceptor. *partner B can also be biotinylated, tagged, Fc fused. In these cases, use the corresponding HTRF reagent (anti-Tag, anti-species, protA, Streptavidin) labeled with acceptor for the detection.

Assay protocol

The example on the right describes the protocol using a 20 µL final assay volume for detecting an interaction between a Human Fc fused-tagged partner A and a non-tagged partner B*. Dispense the 2 partners (10 µL), incubate, add PAb Anti Human IgG-Tb cryptate (5 µL) and anti-partner B labeled with acceptor (5 µL), incubate and read. *partner B can also be biotinylated, tagged, Fc fused or directly labeled. In these cases, use the corresponding HTRF reagent (anti-Tag, anti species, protA, Streptavidin) labeled with acceptor for the detection.

Assay details

How do the number of tests relate to active moiety?

The average conjugate quantity per well reflects overall biological material content. Using the active moiety amount is generally preferred to the quantity of total conjugate. For Cryptate and d2 conjugates, the total conjugate amount equals that of the active moiety, since the molecular weight of the label is negligible. This is not the case for XL665 labeled entities for which the quantity of total conjugate will vary depending on the final molar ratio of the XL665 conjugate, however, the amount of active moiety, provided by Revvity, is constant and based on the number of tests ordered.

PPI specifications description active moiety in htrf conjugate

Recommended quantities of Cryptate and XL665 conjugates

Cryptate conjugates must not be excessive in order to prevent reader saturation and an unacceptable level of background. In most cases, a cryptate concentration of 1 to 5nM is appropriate, and will generate 20,000 to 80,000 cps at 620 nm depending on the HTRF compatible reader used. The XL665 conjugate must match its assay counterpart as closely as possible in order for the maximum number of biomolecules to be tagged with the XL665 acceptor. Thus, to detect a tagged molecule at an assay concentration of 20nM, the concentration of anti-Tag-XL665 should be equimolar or higher.

Specifications

Other specifications

Application	Protein-Protein Interaction
Brand	HTRF
Detection Modality	HTRF
Product Group	Fluorescent Reagent
Shipping Conditions	Shipped in Dry Ice
Target Class	Biologics
Target Species	Human
Technology	TR-FRET
Therapeutic Area	Cardiovascular Infectious Diseases Inflammation Metabolism/Diabetes NASH/Fibrosis Neuroscience Oncology & Inflammation Rare Diseases
Unit Size	1,000 assay points
