AlphaPlate 384-well, light gray, untreated, case of 50
AlphaPlate 384-well, light gray, untreated, case of 50

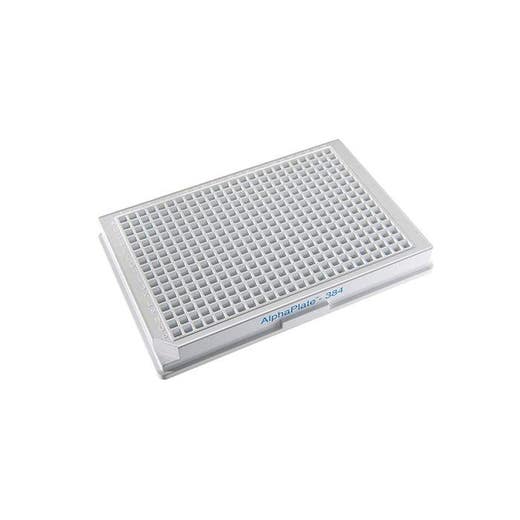

AlphaPlate-384, Light gray, untreated image
| Feature | Specification |
|---|---|
| Surface Treatment | Untreated |
| Color | Gray |
| Detection Modality |
Alpha Luminescence |
| Lids Included? | No |
| Material | Polystyrene |
| Plate Format | 384 wells |
| Well Shape | Flat-bottom |
| Well Volume | 105 µL |
| Working Volume | 24 - 90 µL |
For research use only. Not for use in diagnostic procedures.
AlphaPlate 384-well, light gray, untreated, case of 50
AlphaPlate-384, Light gray, untreated image
AlphaPlate 384-well, light gray, untreated, case of 50
Product information
Overview
Packaging notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Well plate dimensions
Well format: 384-well
| Description | Specification |
|---|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 105 µL |
| Recommended working volume | 24 µL- 90 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 3.65 |
| Well depth (mm) | 10.4 |
| A1 to top offset (mm) | 9.0 |
| A1 to side offset (mm) | 12.10 |
| Well-to-well spacing (mm) | 4.50 |
| Volume | 105 μL |
Specifications
| Color |
Gray
|
|---|---|
| Plate Format |
384 wells
|
| Well Shape |
Flat-bottom
|
| Well Volume |
105 µL
|
| Working Volume |
24 - 90 µL
|
| Application |
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
AlphaPlate
|
| Detection Modality |
Alpha
Luminescence
|
| Format |
Microplates
|
| Lids Included? |
No
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Surface Treatment |
Untreated
|
| Unit Size |
case of 50
|
