Introduction
To address a wide range of experimental needs, the pHSense™ reagent catalogue offers complementary solutions for two types of binders:
Antibody labeling reagents
Binders such as antibodies or nanobodies can be labeled using pHSense-labeled anti-IgG or anti-VHH reagents.
| pHSense™ product | 96 wells | 2 x 96 wells | 10 x 96 wells |
|---|---|---|---|
| Eu Fab Anti-Human IgG | 81HUEU1AA | 81HUEU1AB | 81HUEU1AC |
| Eu Fab Anti-Mouse IgG1 | 81MO1EU1AA | 81MO1EU1AB | 81MO1EU1AC |
| Eu Fab Anti-Mouse IgG2 | 81MO2EU1AA | 81MO2EU1AB | 81MO2EU1AC |
| Eu Anti-Rabbit IgG | 81PAREU1AA | 81PAREU1AB | 81PAREU1AC |
| Eu Anti-VHH | Available as custom product, please enquire | ||
For example, the pHSense Eu Fab anti-Human IgG (#81HUEU1AA), allows tracking of antibody or ADC internalization while minimizing receptor crosslinking and background signal. This makes it particularly well suited for comprehensive internalization studies and ADC development.
Figure 1: Detection of an untagged antibody internalization using the pHSense technology
Untagged antibodies can be indirectly labeled with pHSense reagents, using a pHSense labeled Fab anti-IgG.
Tag-labeling reagents
Receptors, antibodies, or ligands bearing Tags can be labeled with anti-Tag pHSense reagents.
| pHSense™ product | 96 wells | 2 x 96 wells | 10 x 96 wells |
|---|---|---|---|
| Eu Anti-FLAG | 81FL1EU1A | 81FL1EU1AB | 81FL1EU1AC |
| Eu Anti-HA | 81HAEU1AA | 81HAEU1AB | 81HAEU1AC |
| Eu Anti-His | 81HISEU1AA | 81HISEU1AB | 81HISEU1AC |
| Eu SNAP Labeling Reagent | 81SNEU1A | 81SNEU1AB | 81SNEU1AC |
| Eu Streptavidin | 81SAEU1AA | 81SAEU1AB | 81SAEU1AC |
| Eu Monomeric Streptavidin | 81SAMEU1AA | 81SAMEU1AB | 81SAMEU1AC |
This versatile approach allows researchers to use a wide range of tagged receptors or receptor binders, including tag-labeled antibodies, nanobodies, ligands, or other receptor-targeting molecules to assess cellular uptake in real time.

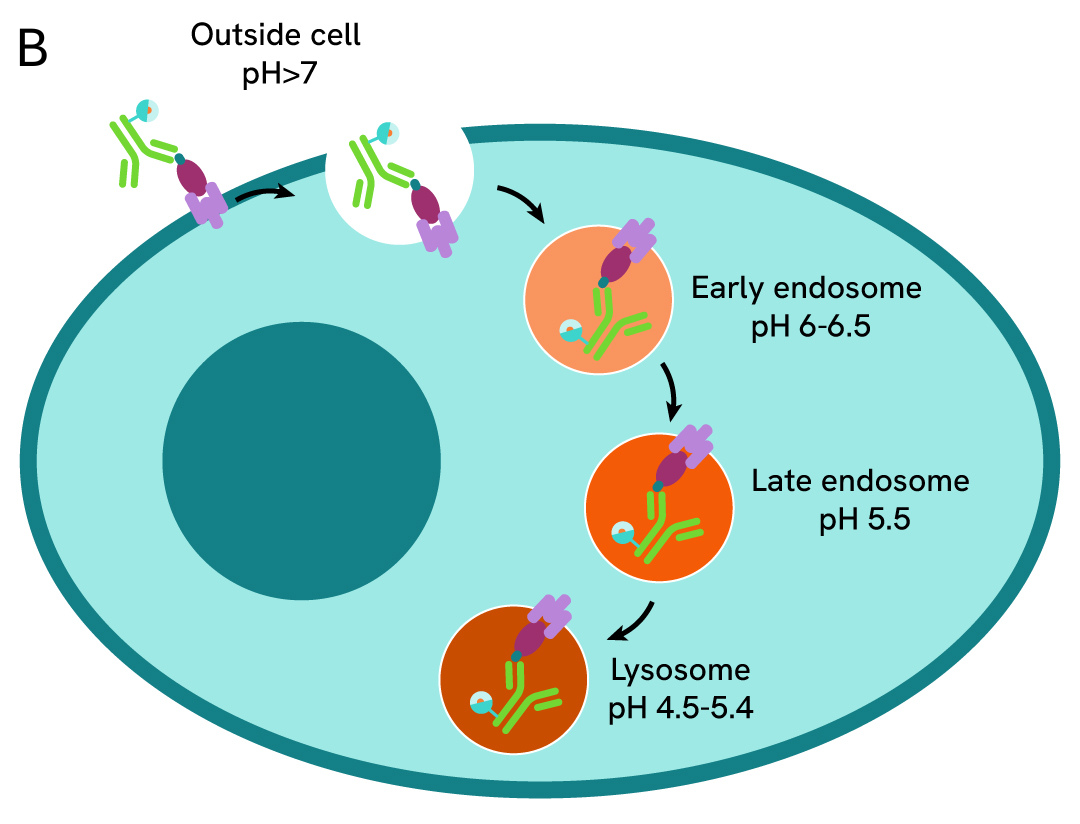

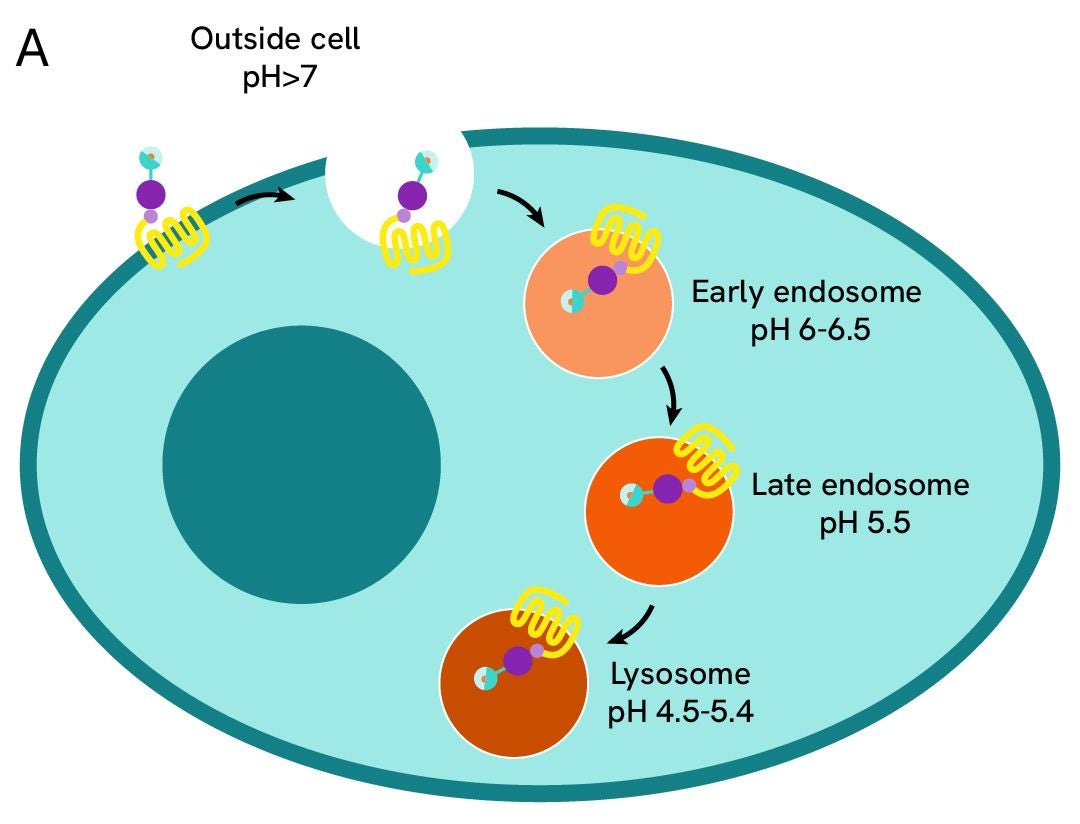

Figure 2: Detection of a tagged molecule internalization using the pHSense technology
Tagged Receptors (A) or tagged ligands (B) can be indirectly labeled with pHSense reagents, using a pHSense labeled anti-Tag antibody or SNAP labeling reagent (A) or a pHSense labeled anti-tag antibody (B).
Custom-labeling option
If you need your protein or molecule of interest to be directly labeled with the pHSense dye, please contact your local representative to discuss Revvity’s custom labeling service.
A complete pHSense reagents product listing is available at here
For research use only. Not for use in diagnostic procedures.
